BE-50 LED Stereo Microscope

Stereomicroscopes of the BE-50 series have interchangeable objectives mounted in a carriage. They are perfect for cleaning and preserving soil finds and for many other collecting hobbies.

The important characteristics of these stereo microscopes are a large depth of field and extra-long working distance. These characteristics make these microscopes ideal for jewellers, watchmakers, for soldering work, quality control and so on.

A 44 cm flexible arm with LED illumination ensures that the object can be illuminated from all sides and the heavy, metal base provides stability. Magnifications range from 2.5x to 40x.

For cleaning and preserving soil finds, 10x magnification is recommended.

Features:

• Stereo microscopes for amateurs and professionals with extra-long working distance
  Overhanging tripod
• LED illumination
• Interchangeable objectives and eyepieces for magnifications from 2.5x to 40x
• Large working space

Technical specifications:

• OCULAIRS
  Pair of WF 10x/20 mm eyepieces
• STATE
  Stable, overhanging heavy base on column tripod
• FOCUS CONTROL
  Coarse adjustment with slip control
• LIGHTING
  Striking 1 W LED illuminator, 44 cm on flexible arm. Light intensity is adjustable

OBJECTIVES

- 0.5x objective with fixed magnification, 5x magnification, field of view 40 mm. Working distance 250 mm.
- 1x objective with fixed magnification, 10x magnification, field of view 20 mm. Working distance 230 mm.
- 2x objective with fixed magnification, 20x magnification, field of view 10 mm. Working distance 119 mm.

Higher magnifications up to 40x can be achieved by adding other eyepieces. All lenses are treated against fungus and have an anti-reflection coating for maximum light output

PACKAGING
Complete with plug, dust cover, spare fuse and manual. All packed in polystyrene packaging.

Info Download

Available separately / extension

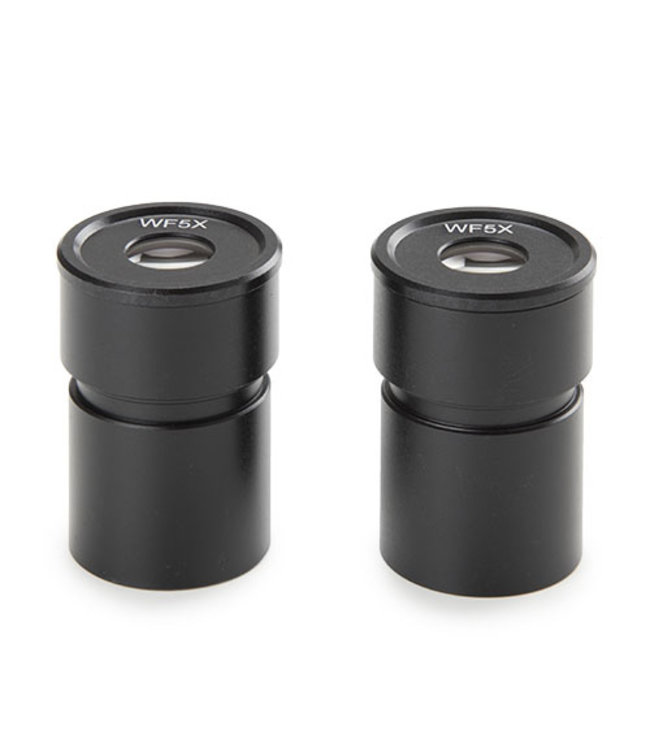

• Pair of WF 5x/22 mm eyepieces

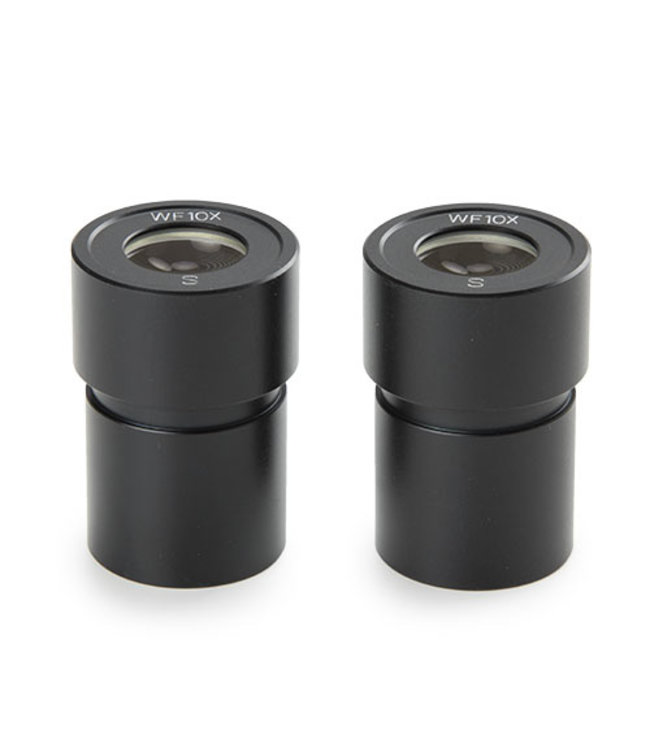

• Pair WF 10x/20 mm eyepieces
• Pair WF 15x/12 mm eyepieces

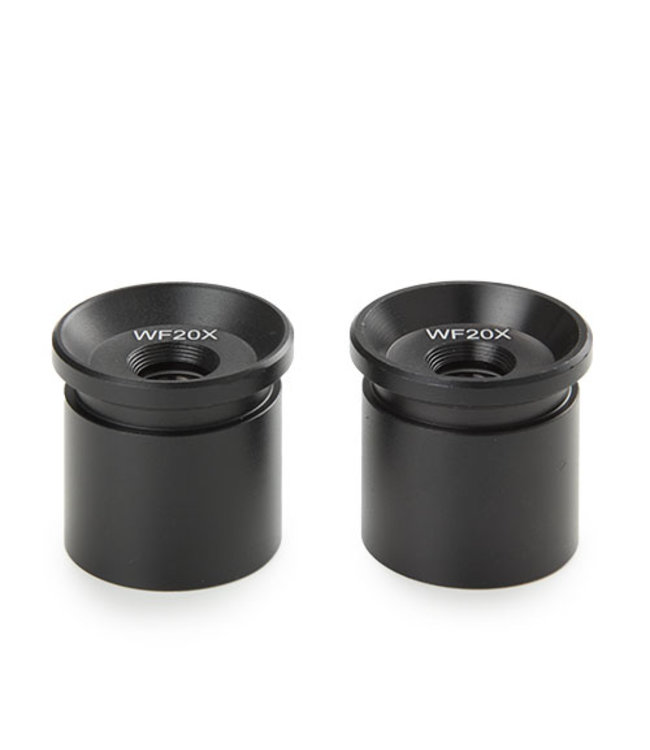

• Pair WF 20x/10 mm eyepieces
• WF 10x/20 mm eyepieces with micrometer 10mm/100

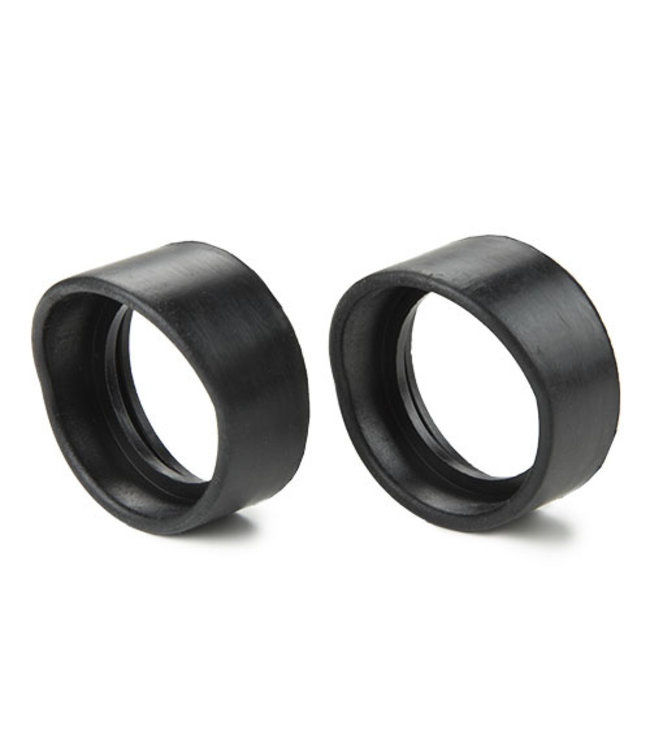

• Pair of eyecups

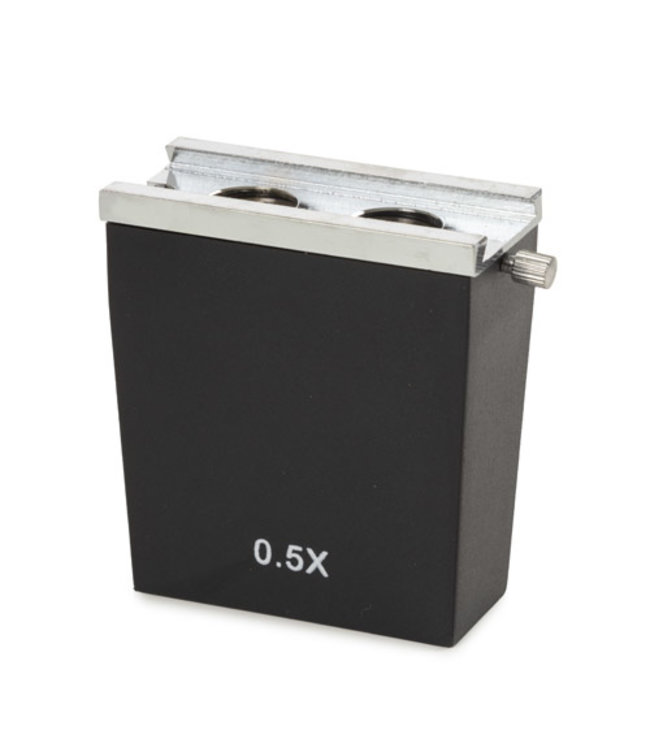

• Objective 0.5x, working distance 250 mm
• Objective 1x, working distance 230 mm

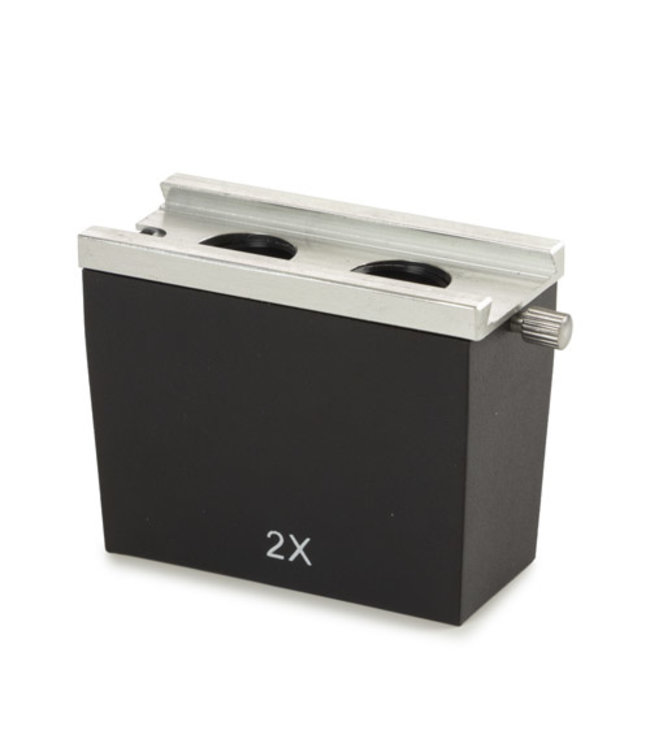

• Objective 2x, working distance 119 mm

Note: We do not have these items on stock. They have an additional delivery time of about 2 weeks.
